How to Stop Rust on a Vehicle: A Practical DIY Guide
Learn practical, safe methods to stop rust on a vehicle. This guide covers assessment, removal, conversion, priming, and long-term prevention for DIY homeowners.

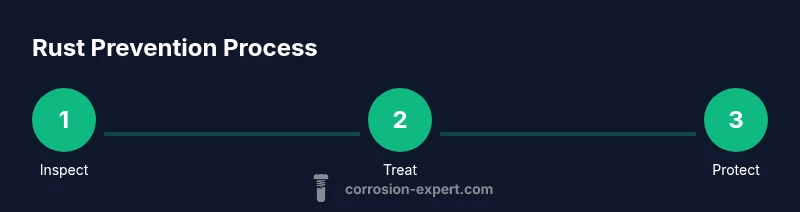

By following this guide, you’ll stop rust from spreading on your vehicle and extend its life. Start with a quick rust assessment, then choose between mechanical cleaning, rust converters, and protective coatings. Finish with a maintenance routine to keep metal sealed and protected. This approach covers underbody, panels, seams, and hard-to-reach spots.
Why rust happens on vehicles and what you can do\n\
Assessing rust severity before you act\n\
Quick fixes vs major repairs: when to DIY and when to call pros\n\
Surface rust removal: mechanical and chemical options\n\
Deeper rust treatment: converters and primers\n\
Protective coatings and long-term prevention\n\
Maintenance routines and monitoring rust risks\n\
Safety considerations: tetanus, ventilation, disposal\n\
AUTHORITY SOURCES\n\n- https://www.cdc.gov/tetanus/prevention.html\n- https://www.osha.gov\n- https://extension.umn.edu
Tools & Materials
- Wire brush or stiff nylon brush(Used to remove loose rust and dirt from the surface)
- Putty knife or scraper(Scrape off flaky paint and scale gently)
- Angle grinder with wire wheel or sanding disc(Only if heavy rust requires more aggressive material removal)
- Sandpaper assortment (60-400 grit)(For smoothing edges and preparing surface)
- Rust converter(Follow product instructions; allow curing time)
- Primer and rust-inhibiting paint(Epoxy primers; color-matched topcoat)
- Protective undercoating or rust-proofing spray(Add after final paint for extra protection)
- Safety gear (gloves, goggles, respirator)(Protect skin, eyes, and lungs from dust and solvents)
- Solvent cleaner or degreaser(Clean oily residues before treatment)
- Masking tape and plastic sheeting(Protect surrounding areas during painting)
- Waste disposal container and sealable bags(Safe disposal of debris and rags)
Steps
Estimated time: Total time: 3-6 hours (varies with extent of rust and vehicle access).
- 1
Inspect the vehicle for rust hotspots
Walk around the car and inspect all likely areas; use a flashlight to check hidden spots like underbody, wheel arches, and door sills. Note the extent and if rust is surface or structural. Document locations with photos to guide your work.
Tip: Mark up photos or sketches to track progress and ensure you don’t miss spots. - 2
Prepare workspace and safety gear
Park on a level surface, lay down plastic, and set up good ventilation. Wear a respirator, safety glasses, and gloves. Keep a dedicated waste container nearby for rags and debris.
Tip: Ventilation is essential when using chemical rust removers or solvents. - 3
Remove loose rust and clean the surface
Use a wire brush to knock off loose rust, then clean with a degreaser to remove oil and grime. Rinse and dry completely before proceeding to avoid moisture getting trapped.
Tip: Drying completely prevents coatings from lifting later. - 4
Choose rust treatment method
For light surface rust, mechanical removal plus primer can suffice. For stubborn spots, apply a rust converter first, then prime. Always follow product instructions.
Tip: Work in thin, controlled passes to avoid gouging the metal. - 5
Apply converter and prime
Apply rust converter to cleaned areas and allow it to cure as directed. Once cured, apply epoxy primer to seal the metal and improve paint adhesion.
Tip: Do not rush curing times; improper curing reduces coating life. - 6
Paint and seal the area
Apply epoxy primer in thin coats, then topcoat in several light layers. Use masking to protect adjacent panels and allow full drying between coats.
Tip: Thin coats prevent runs and ensure even coverage. - 7
Add protection and set maintenance
Finish with undercoating or rust-proof spray for edges and seams. Create a 6–12 month maintenance plan to inspect for new rust and touch up as needed.
Tip: Document maintenance dates to stay on schedule.
Quick Answers
What is the difference between surface rust and penetrating rust on a vehicle?
Surface rust sits on the surface and is usually removable with cleaning or rust removers. Penetrating rust has damaged the metal, often forming pits or holes, and may require professional repair or panel replacement.
Surface rust can often be treated at home, but penetrating rust may need professional help.
Can I fix rust myself, or should I hire a pro?
Light surface rust is commonly DIY-friendly with proper tools and patience. Deeper rust affecting structural components or underbody panels usually requires professional repair or replacement to ensure safety.
DIY is fine for small spots, but deep rust is best left to professionals.
Is rust converter safe for automotive use?
Rust converters can stabilize light rust and prepare surfaces for primer, but they are not a cure for deep corrosion. Always follow the manufacturer’s instructions and allow full cure time.
Converters stabilize rust, then you prime and paint for lasting protection.
How long does rust prevention last after treatment?
Durability depends on climate, exposure, and maintenance. Regular inspection and reapplication of coatings or sealants every year or two is common in harsh environments.
Protection duration varies; inspect annually and recoat as needed.
What maintenance schedule helps prevent rust in winter?
Wash the underside after snow or road-salt use, inspect for chips, and touch up promptly. Apply undercoating and seal seams to minimize moisture intrusion.
Wash undercarriage after winter salt and inspect for chips.
Quick Summary
- Inspect early and document rust hotspots.
- Differentiate surface rust from deep rust to guide repair scope.
- Use proper PPE and ventilation for safety.
- Primer and coating are essential for long-term protection.
- Schedule regular checks to catch new rust early.
