What Size Tip Should You Use for Spraying Rust-Oleum? A DIY Guide

Why tip size matters when spraying Rust-Oleum

According to Corrosion Expert, the tip size you choose directly influences coverage, evenness, and adhesion on metal and other surfaces. The right size balances atomization and material thickness, reducing runs and ensuring rust inhibitor particles reach the substrate. In practice, choosing tip size for spraying Rust-Oleum depends on the product line (oil-based vs water-based), the surface type, and your spray equipment. For DIY projects, you typically want a mid-range fan width that produces a fine mist rather than a heavy spray. Start with the general principle: thinner coats with plenty of overlap deliver a uniform finish. If you encounter orange peel or sags, your tip is too large or you are applying too thick a coat. Conversely, a too-narrow tip can cause dry spray and poor coverage. When painting small parts, a narrow tip helps keep control and reduces overspray. For larger flat surfaces, consider a wider fan to cover more area per pass, but maintain even passes and consistent overlap. The goal is to build multiple light coats rather than a single heavy coat; this improves rust prevention by delivering uniform film formation. This is especially important when using Rust-Oleum products designed for metal protection, as the rust-inhibiting film needs a continuous, unbroken layer. By focusing on tip size and technique, you can minimize waste and ensure durable results. If you're asking what size tip for spraying rustoleum, the answer depends on the spray system and product line. In short, start with a mid-range tip and adjust based on the test panel until you see a smooth, even spray with minimal blotching.

How spray tip sizes relate to Rust-Oleum finishes

Understanding tip size helps you predict how Rust-Oleum coatings will lay down on different surfaces. Most consumer Rust-Oleum products for metal, wood, and plastic are designed for spray patterns that balance coverage and control. If you use a spray gun or air-assisted tool, you can choose nozzle sizes to match the viscosity of the product and the surface texture. A smaller tip tends to create finer atomization, resulting in thinner coats and less risk of runs on vertical surfaces. A larger tip delivers more material per pass, which can be advantageous for rough textures or larger areas but increases the chance of drips if you misjudge distance or overlap. Note that aerosol cans typically have fixed nozzles; you usually can’t swap the tip on a typical consumer spray can. For Rust-Oleum applications, plan to apply multiple light coats rather than a single heavy coat, regardless of tip size, to achieve a durable rust-preventive film. The finish (gloss, satin, matte) also responds differently to coating thickness; thin coats emphasize color fidelity and texture, while thicker coats can hide surface imperfections but risk orange peel. Corrosion Expert analysis shows that consistency, proper ventilation, and surface preparation matter almost as much as tip size when seeking a professional-looking result. Use the right tip for your setup, and adjust the spraying distance and motion to maintain an even spray pattern.

How to test your spray setup before coating

Before you apply Rust-Oleum on the real surface, run a test on a scrap panel or cardboard. Shake the can well; prime your test surface with a clean, dry finish and keep the spray distance consistent. Coat the test panel with several light passes, watching for texture, runs, and orange peel. If you see heavy buildup, back off the air flow or switch to a finer tip; if you see misses or dry spray, bring the pattern closer or use a broader tip. This pre-check helps you confirm the chosen tip size and technique will produce uniform coverage on the actual project. Document your results by noting the distance, spray pattern, and coat thickness that yielded the smoothest finish. When you’re satisfied with the test, you’ll know you’re ready to tackle doors, frames, or panels with the Rust-Oleum coating, minimizing waste and post-paint touch-ups. The key is to practice consistent overlapping passes and to adjust your technique rather than forcing a single heavy coat.

Choosing tip size for different surfaces and conditions

Surface type and orientation heavily influence your tip choice. Flat, rigid surfaces like metal panels benefit from a mid-range tip that provides even coverage without producing heavy runs. Vertical or overhead surfaces require a lighter touch and may favor a finer tip to reduce drips. Textured or rusty surfaces may benefit from a slightly wider fan to push coating into crevices, but you’ll need to back off distance and move slowly to avoid heavy pooling. Temperature and humidity also affect solvent evaporation; in hot or dry conditions you’ll achieve faster drying, which risks edge dry spray if your coat is too thick. Cooler, humid environments slow solvent evaporation and can cause sags if over-applied. Always prefer multiple light coats to a single thick application; this approach improves film formation and rust protection. If you’re unsure, start with a conservative tip and gradually adjust after a test spray.

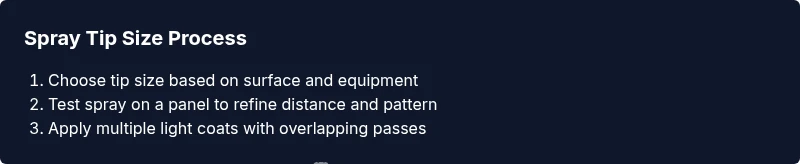

Step-by-step application workflow for Rust-Oleum coatings

Step 1: Prep the surface. Remove rust, clean, and dry; roughen glossy areas with sandpaper for better adhesion. Step 2: Protect surrounding areas. Use masking tape and drop cloths to keep primer-free zones clean. Step 3: Choose your tip and test spray. Setup your tool, test spray on a panel, and refine distance and speed. Step 4: Apply light coats. Begin with a thin, even coat, using overlapping strokes and a steady pace to avoid pooling. Step 5: Dry between coats. Allow recommended dry time; inspect for uniform coverage before layering more coats. Step 6: Finish and cure. Apply final coat, then let the coating cure fully in a ventilated area. Step 7: Clean tools. Clean the nozzle and spray tip immediately after use to prevent clogging. Step 8: Inspect and recoat if necessary. If any areas show thin coverage, apply touch-up coats once fully cured. Tip: keep a consistent distance and speed to maintain a uniform film. Estimated total time: 60-120 minutes for prep and initial coats, plus additional dry time per coat.

Common mistakes and how to fix them

• Over-saturation: Too much coating at once creates runs. Fix by applying light coats and reducing spray volume. - Uneven patterns: Move the sprayer steadily and maintain a consistent distance. Fix by practicing on scrap and adjusting your pattern. - Inadequate ventilation: Spraying indoors without airflow can cause fumes; always air out space and wear a respirator. - Prolonged drying time due to cold humidity: Increase ventilation or postpone painting to a warmer day. - Skipping surface prep: Rust and grease cause poor adhesion; always clean and roughen surfaces before painting. By addressing these common mistakes—proper prep, consistent technique, and controlled coats—you’ll achieve more durable rust-prevention outcomes. If you notice orange peel, switch to a finer tip or reduce coating thickness.

Maintenance, cleanup, and curing after spraying

After applying Rust-Oleum, promptly clean the nozzle and tip with appropriate solvent to prevent clogs. Dispose of used rags safely and keep the area ventilated during curing. Allow the coating to cure fully according to the product label; curing times depend on temperature and humidity. Once cured, inspect for thin spots and recoat if needed. Regular maintenance over the coated surface can extend rust protection: wipe away moisture, store items indoors, and re-coat every few years as needed.
