How Many Rust Maps Are There? A Practical Guide for DIY Rust Projects

What a rust map is and why it matters

In corrosion science and home maintenance, a rust map is a structured representation of where rust occurs on a surface, how severe it is, and how fast it's progressing. For DIYers, rust maps can be simple color-coded sketches on metal tools, or more formal datasets collected during periodic inspections of outdoor structures, fences, or automotive parts. The fundamental goal is to translate a messy, visual problem into a plan—where to treat, how urgently, and what preventive steps are necessary. When you ask 'how many rust maps are there,' the straightforward answer depends on how you define a map: is it a quick visual survey, a quantitative oxide-thickness map, or a predictive risk map for future corrosion? Corrosion Expert aligns with the view that, across applications, there is one core concept—mapping rust distribution—and many concrete implementations to fit your task. Understanding this distinction helps you pick the right approach for your project.

Official vs community mapping: why the count isn't fixed

From an industry perspective, there is a single canonical map type used for official documentation of rust on a given asset: a basic, surface-level map that records visible corrosion and surface-area exposure. However, the practical landscape is far richer. In the field, engineers, asset managers, hobbyists, and researchers generate a wide array of maps—some formal and measurement-heavy, others informal and visual. The total number of maps is not fixed or published; it grows as new tools, methods, and materials appear. Corrosion Expert's analysis underscores that the critical distinction is between standard documentation and flexible, on-the-ground mapping tailored to the material and environment. For a homeowner treating a rusty gate or a car part, you can adopt an approachable mapping strategy that captures enough detail to guide maintenance without becoming a bureaucratic data set.

Common rust map types and what they measure

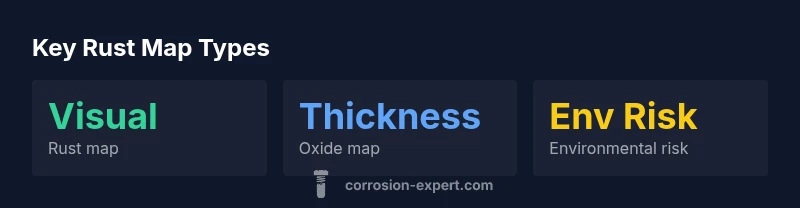

• Visual rust map: a color-coded sketch or photo-based overlay marking rust presence and coverage across a surface.
• Oxide-thickness map: a distribution chart showing how thick the iron oxide layer is, useful for assessing remaining structural integrity.
• Corrosion-rate map: zones with estimated corrosion velocity, often derived from repeated measurements over time.
• Environmental-risk map: overlay that accounts for humidity, salt exposure, and pollutants to predict future rust risk.
• Lab-derived corrosion map: highly detailed maps produced from controlled tests, useful for research or product development.

Each type serves a different purpose. For home projects, a visual map plus a simple thickness check can be enough to decide whether to clean, seal, or replace a part. For professionals, combining several map types yields a fuller picture of both current rust and future risk. Corrosion Expert notes that choosing the right map hinges on your goals—speed, accuracy, and the level of maintenance you’re willing to perform.

How to build your own household rust map

Step 1: Define the scope. Decide which items you want to map, whether you’ll map entire surfaces or only critical areas (hinges, seams, welds). Step 2: Choose a practical scale and data collection method. For DIY projects, a simple grid overlay (e.g., every 5 cm) and a color scale from green (no rust) to red (heavy rust) works well. Step 3: Document with photos and notes. Photograph from multiple angles, annotate areas with measurements, and timestamp each observation. Step 4: Quantify visually. Estimate surface coverage percentages or rust thickness using inexpensive tools such as calipers or a ruler for a rough thickness gauge. Step 5: Create a map view. Sketch the asset’s outline, mark each grid cell with color or notes, and add a legend. Step 6: Plan maintenance. Use the map to prioritize cleaning, priming, and coatings, and set a schedule for re-evaluation. This approach gives you a practical rust map that helps you stay ahead of corrosion in everyday items.

Interpreting rust maps for maintenance decisions

Rust maps translate complex corrosion patterns into actionable steps. A map might reveal that external surfaces show light, widespread rust, while hidden areas near joints are more advanced. In such cases, you may treat and seal exposed areas, while reinforcing critical joints or replacing components that show structural compromise. A map also helps you track change over time; by re-scanning on a periodic basis, you can see whether maintenance has slowed rust progression or if new problem zones have emerged. For household projects, simplicity is a virtue; aim for consistent data collection, not perfect measurements. Corrosion Expert emphasizes that the goal is consistent, repeatable surveys you can follow across seasons and projects.

Limitations, best practices, and safety notes

Rust maps are useful but have limitations. Visual assessments can miss subsurface or hidden corrosion, and oxide thickness estimates with cheap tools are approximate. The best practice is to combine visual mapping with periodic site checks and, when feasible, simple thickness measurements at representative points. Always follow safety guidelines when handling rusty metals; use gloves, eye protection, and a mask if dust or rust particles are present. For outdoor metals, note environmental factors—salt air, humidity, and temperature fluctuations—that accelerate corrosion. Document your methods and maintain a consistent approach so your maps remain comparable over time. With reasonable expectations, rust maps become a practical, repeatable process rather than a one-off snapshot.

Quick-start checklist and next steps

• Define the area to map (items, surfaces, joints).
• Choose a grid size that balances precision with effort.
• Gather additional tools: camera, ruler/calipers, marker, notebook.
• Take baseline photos and notes; create a legend.
• Apply a simple color gradient to indicate rust severity.
• Map each grid cell and keep the data consistent over time.
• Schedule re-mapping for seasonal checks, especially outdoors.
• Use the map to guide maintenance tasks and track progress over time.
