Fix Frame Rust: Step-by-Step Repair Guide
Learn a safety-first, practical method to fix frame rust. This Corrosion Expert guide covers rust assessment, tools, a detailed repair process, and prevention tips to extend steel frame life.
You can fix frame rust by assessing severity, removing loose rust, treating remaining oxidation, priming, and painting to prevent recurrence. Gather basic rust-removal tools, a rust converter, primer, and paint, plus safety gear. For deep pits or structural damage, replacement or professional repair may be required.
What causes frame rust and how it spreads
Rust on metal frames arises when iron or steel reacts with oxygen and moisture. In outdoor environments, humidity, rain, and road salt accelerate corrosion, especially on uncoated or damaged surfaces. Framed structures made from ferrous alloys are particularly vulnerable; even small chips in paint can expose fresh metal and invite rust. Additionally, contact with other metals can create galvanic corrosion, speeding up rust where different metals touch. Poor ventilation and condensation inside hollow frames can trap moisture, creating micro-environments where rust forms unnoticed. By understanding these conditions, you can spot problems early and act before rust compromises strength. According to Corrosion Expert, addressing frame rust early saves structural integrity and extends service life.
Key takeaways:
- Moisture, salt, and paint damage are the main rust accelerants.
- Hollow frames trap moisture; flat surfaces dry quickly when exposed to air.
- Small chips equate to potential rust sites over time if not treated.
Assessing rust severity before fixing
Safety first: PPE and precautions
Surface rust vs deep corrosion: repair options
Step-by-step approach for small rust spots (surface repair)
When to replace a frame instead of repairing
Maintenance and prevention to extend frame life
Tools & Materials
- Angle grinder or wire brush attachment(Use a narrow wire cup brush for curved frames; ensure grinder guard is in place and you wear eye protection)
- Safety gear (gloves, goggles, respirator or dust mask)(NIOSH-rated respirator for dust; chemical resistance gloves recommended)
- Sandpaper (60-120 grit)(Finish with 120 grit before applying primer)
- Rust converter(Choose water-based or solvent-based; follow product cure times)
- Epoxy putty or filler(Use for pits deeper than 1-2 mm; smooth with putty knife)
- Epoxy primer (etch primer preferred)(Promotes adhesion on bare metal)
- Rust-inhibitive paint or enamel(Top coat to seal against moisture; consider UV protection)
- Masking tape and plastic sheeting(Protect adjacent surfaces and seals from overspray)
- Degreaser/solvent(Clean surface before applying any coatings)
- Rags and brushes(For application and cleanup; avoid lint from brushes)
- Putty knife or spreader(Smooth filler evenly over pits)
- Sealant or seam sealer (optional)(Optional for joints/seams to lock out moisture)

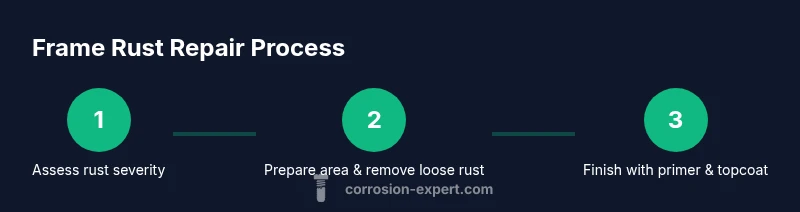

Steps
Estimated time: 2-5 hours
- 1
Assess the frame and prepare workspace
Inspect the frame for rust pockets, scale, pitting, and any signs of structural weakness. Clean the area around the rust with a degreaser, then set up a well-ventilated workspace with protective covers for nearby components. Document the areas to treat and plan your approach.
Tip: Take clear photos of each area before you start to guide reassembly and future maintenance. - 2
Remove loose rust with proper tooling
Use an angle grinder with a wire cup brush or a hand wire brush to remove loose rust from the surface. Work in smooth, even strokes and avoid deep grinding that could thin the metal or damage delicate sections. Stop if you encounter dense pitting that looks aggressive.
Tip: Wear eye protection and a dust mask; loose rust can throw off sharp particles. - 3
Clean and degrease the exposed metal
Wipe the exposed metal with solvent or degreaser to remove oils and dust. Rinse with clean water if the product requires, then dry thoroughly to prevent flash rusting before applying any coating.
Tip: Dry completely; moisture will undermine primer adhesion. - 4
Apply rust converter to remaining oxidation
Brush or spray rust converter onto areas where rust remains after grinding. This chemical converts iron oxide into a stable layer and primes the metal for sealing coatings. Allow the converter to cure per the manufacturer’s guidance.
Tip: Do not rush cure times; improper curing reduces coating adhesion. - 5
Fill deep pits with epoxy putty
If you find pits deeper than 1-2 mm, mix and apply epoxy putty to level the surface. Smooth with a putty knife, let cure, then lightly sand until flush with surrounding metal.
Tip: Avoid overfilling; you need a smooth base for painting. - 6
Prime and paint to seal the surface
Apply an etching primer designed for bare metal to ensure strong paint adhesion. After the primer dries, apply a rust-inhibitive topcoat or enamel in thin, even layers. Allow adequate drying time between coats and finish with a clear sealant if desired.
Tip: Mask edges to prevent paint bleed; multiple thin coats outperform one thick coat. - 7
Evaluate structural integrity and plan next steps
If rust has compromised thickness, wall thickness, or key joints, you may need professional repair or replacement. For non-structural fixes, monitor the treated areas regularly and recoat every few years as preventive maintenance.
Tip: Prioritize safety over aesthetics; rust in critical load-bearing zones is a red flag.
Quick Answers
Can frame rust be fixed without replacing the frame?
Yes, many surface and light to moderate rust issues can be repaired with cleaning, converter treatment, filler for pits, and repainting. Structural rust that weakens metal or occurs in critical load-bearing areas may require professional repair or frame replacement into more comprehensive solutions.
Yes, most surface rust repairs are doable at home, but structural rust may require a professional fix.
How long does rust treatment take from start to finish?
A typical DIY rust repair session can take a few hours for smaller areas, plus drying and curing between coats. Deep pits and repaint jobs may extend over a full day or two to ensure proper adhesion and cure time.
Most rust repairs take a few hours, but larger jobs or multiple coats may take longer.
Is rust converter safe to use on all metals?
Rust converters are designed for iron and steel; always check the product label for compatibility with other metals. Use in a well-ventilated area and follow safety guidelines.
Check the label for material compatibility and use proper ventilation.
When should I consider professional repair or replacement?
If you discover deep pits, thinning metal, bent or cracked joints, or if the rust affects moving parts, seek professional assessment. For critical frames, replacement may be the safest option.
If there’s deep rust or structural damage, it's best to get a professional opinion.
Will the rust come back after painting?
Rust can recur if moisture remains or if the underlying metal wasn't fully protected. Proper prep, primer, and a rust-inhibitive topcoat reduce the chances, and regular maintenance helps catch new rust early.
If you protect the metal properly and monitor it, rust can be kept at bay.
What maintenance should I do after fixing frame rust?
Regular inspections, cleaning after exposure to moisture or salt, and periodic reapplication of protective coatings will help prevent recurrence. Keep an eye on joints and seams for any new rust signs.
Inspect regularly and recoat as part of routine maintenance.
Watch Video
Quick Summary
- Inspect frame rust early to avoid structural risk
- Differentiate surface rust from deep corrosion before fixing
- Use rust converter on remaining oxidation, not as a sole fix
- Prime and paint after treatment to prevent recurrence
- If structural damage is evident, seek professional repair or replacement
